Multi-inlet

from mnflow.mfda.cad.dld.theme.block import DLD

In order to include a multi-inlet component in a block.DLD, you can pass the desired configurations via a dictionary named config_multi_inlet as shown in the following example.

dld=DLD(
    d_c=5,
    config_multi_inlet={
        'bar_dims':[5, 200],
        'num_branch':3,
        },
    Np=10,
    Nw=20,
    num_unit=3,
    # constraints OFF
    turn_off_constraints=True,
    # post process transformations
    rot_last=90, # solely for better arrangement of layout in docs
    # image
    opt_save_image=True,
    img_dpu=1,
    )

----------------------------------------
core.DLD___Np:10_Nw:20_gap_w:10.786_pitch_w:21.571_gap_a:10.786_pitch_a:21.571_height:43.142_boundary_treatment:pow_3
block.DLD___num_unit:3_opt_mirror:False_array_counts:[1, 1]_opt_mirror_before_array:[False, False]
----------------------------------------
{'Np': 10,
 'Nw': 20,
 'area': 732873.5198729999,
 'bb': [(-936.347, -198.198), (10.786, 575.583)],
 'count of 1D arrays of core.DLD': 1,
 'd_c': 4.999999999999999,
 'lx': 947.1329999999999,
 'ly': 773.781,
 'performance': {'Flow rate @ 1 bar/area (micro-liter/min/mm-sq)': 1631.2268224864904,
                 'die area (mm-sq)': 0.7328735198729999,
                 'gap over crit. dia.': 2.1571083717157262,
                 'volumetric flow rate at 1 bar (micro-liter/min)': 1195.4829431069234},
 'resistance (Pa.sec/m^3)': 5018892184615.104,
 'volumetric flow rate at 1 bar (m^3/sec)': 1.9924715718448723e-08,
 'volumetric flow rate at 1 bar (milli-liter/hr)': 71.7289765864154}

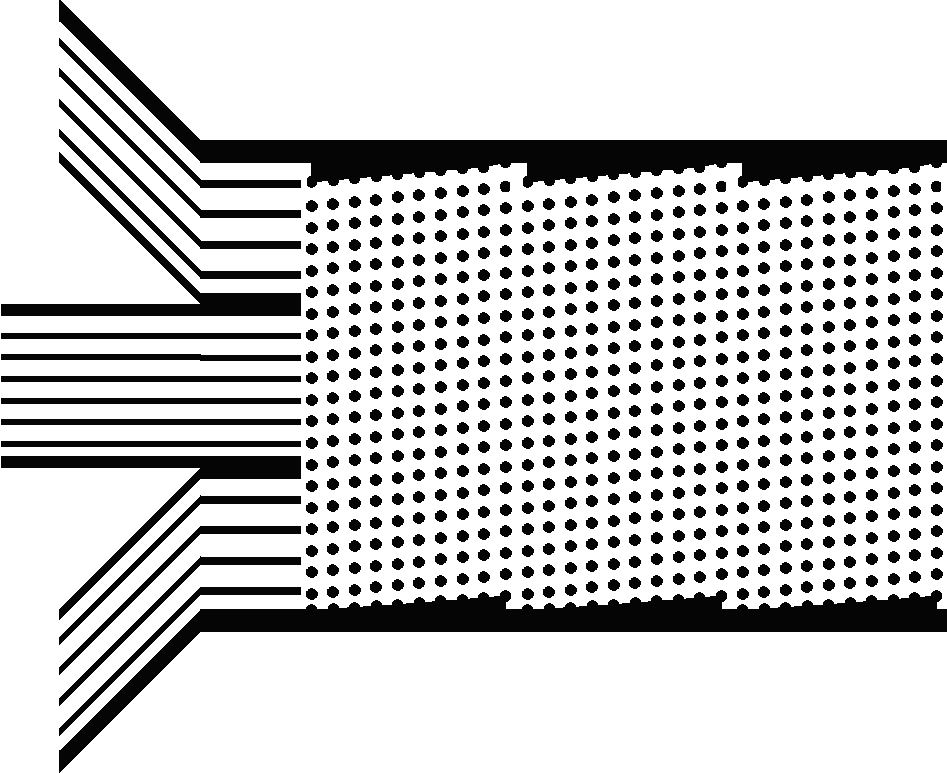

Output layout:

Layout
