Boundary treatment `3d`

A boundary treatment based on the work of Inglis et. al. (2020).

from mnflow.mfda.cad.dld.theme.block import DLD

dld = DLD(
    Np=10,
    Nw=8,
    gap_w=1.,
    boundary_treatment='3d',
    num_unit=2,
    rot_last=90,
    # constraints OFF
    turn_off_constraints=True,
    # image
    opt_save_image=True,
    img_dpu=40,
)

----------------------------------------
core.DLD___Np:10_Nw:8_gap_w:1.000_pitch_w:2.000_gap_a:1.000_pitch_a:2.000_height:4.000_boundary_treatment:3d
block.DLD___num_unit:2_opt_mirror:False_array_counts:[1, 1]_opt_mirror_before_array:[False, False]
----------------------------------------
{'Np': 10,
 'Nw': 8,
 'area': 858.4800000000001,
 'bb': [(-39.0, -5.208), (1.0, 16.254)],
 'count of 1D arrays of core.DLD': 1,
 'd_c': 0.4635835700756275,
 'lx': 40.0,
 'ly': 21.462000000000003,
 'performance': {'Flow rate @ 1 bar/area (micro-liter/min/mm-sq)': 665.945282292314,
                 'die area (mm-sq)': 0.0008584800000000001,
                 'gap over crit. dia.': 2.157108371715726,
                 'volumetric flow rate at 1 bar (micro-liter/min)': 0.5717007059423058},
 'resistance (Pa.sec/m^3)': 1.0495001908578192e+16,
 'volumetric flow rate at 1 bar (m^3/sec)': 9.528345099038431e-12,
 'volumetric flow rate at 1 bar (milli-liter/hr)': 0.03430204235653835}

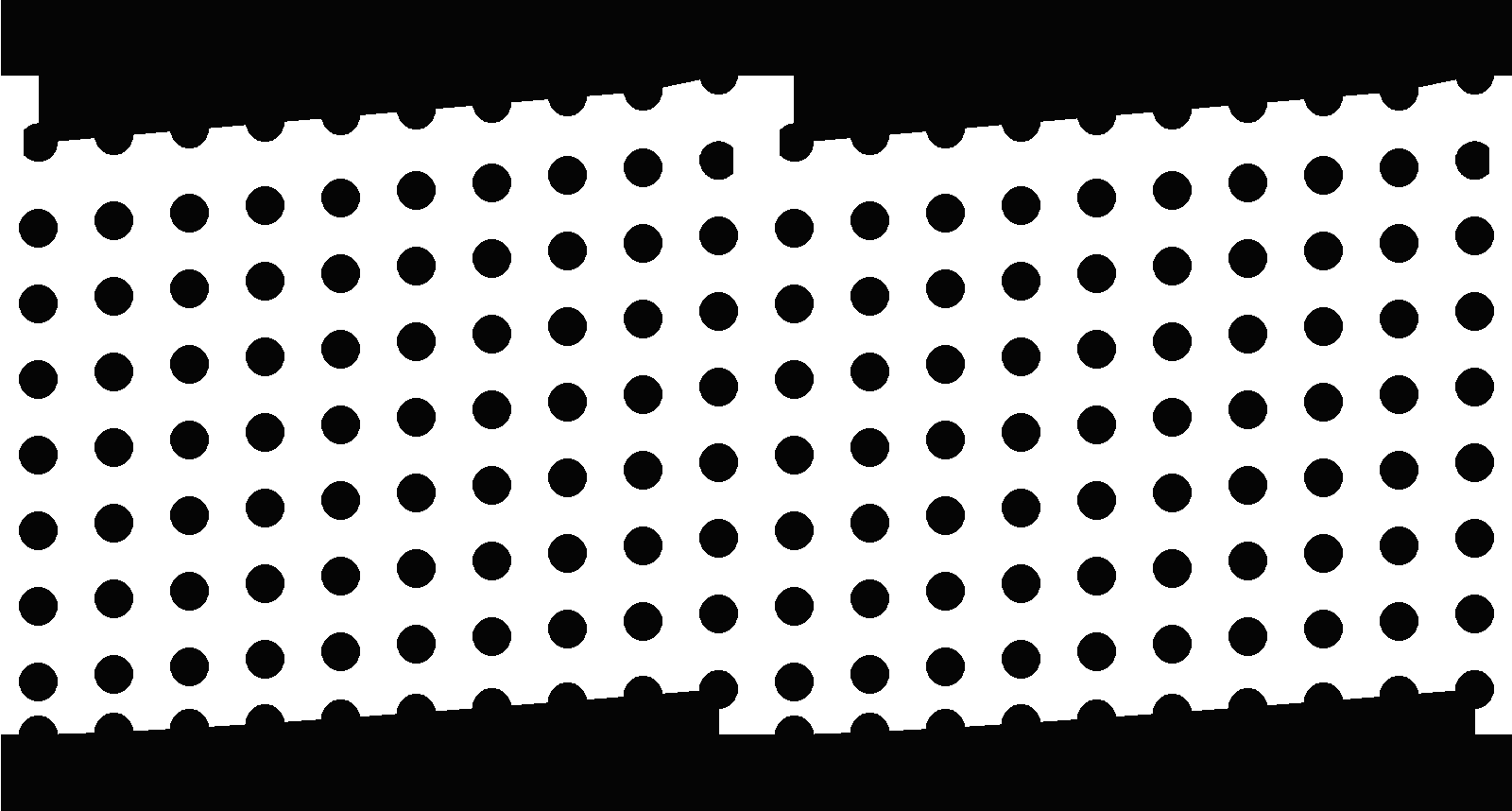

Output layout:

Layout
